تفاصيل المنتج:
|
| اسم المنتج: | كبسولة كيس الهواء | نموذج: | KB-75 / KB-45 |
|---|---|---|---|
| مادة: | ممحاة | طلب: | حفر النفط |

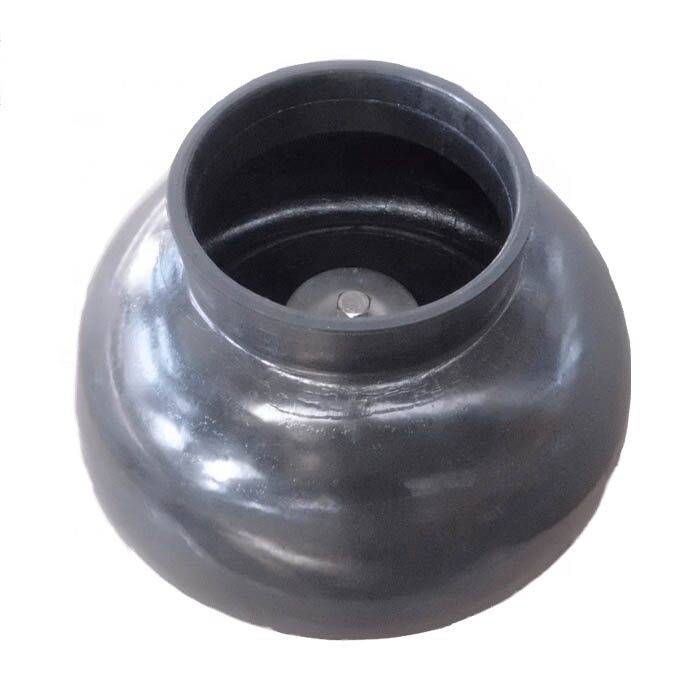

Mud Pump Parts Air Bag Capsule / Diaphargm / Pulsation Dampener API 7K
Shaanxi FORUS Petroleum Machinery Equipment Co., Ltd is a professional supplier of oil drilling machinery and equipment with 6 years experience.
We have obtained the ISO9001 quality certificate.
Our advantage is to provide high quality products and the best service for customer. We have a professional team to ensure fast response, delivery in strict accordance with the delivery date, strictly control product quality, ensure the interests of customers.
Our products have been exported to Russia, Kazakhstan, Kuwait, UAE, Iraq, Indonesia, Malaysia, Brazil, France, Canada, and some other countries and regions.
Our products have been well received among customers and get long-term trust.
Product description
The function of the air bag on the mud pump is to use the volume of the air bag itself to continuously store and compensate the liquid discharged
to a part of the pump in the pipeline, so as to reduce the passivity caused by the pumped liquid. When the instantaneous displacement of the mud
pump increases above its average displacement, the instantaneous pressure in the discharge line rises and the gas volume in the air bag is
compressed.
Application
With the continuous repetition of the inhalation process, the airbag capsules are continuously pressed and stored alternately, and the flow rate in
the straw is automatically adjusted, thereby balancing the displacement and pressure in the pipeline.
Mud Pump Part List
| Item | Product Description | Mud Pump Model | Part No. |
| 1 | Hydraulic cylinder assembly | F-1300/F-1600 | AH130102050100 |
| 2 | Cylinder head flange | F-1300/F-1600 | AH1301010502 |
| 3 | Cylinder head | F-1300/F-1600 | AH1301010503 |
| 4 | Plug board assembly | F-1300/F-1600 | AH130101050400 |
| 5 | Valve rod guides(lower) | F-1300/F-1600 | AH130101050500 |
| 6 | Cylinder head plug | F-1300/F-1600 | AH130101050600 |
| 7 | Positioning plate | F-1300/F-1600 | AH1301010507 |
| 8 | Cylinder head gasket | F-1300/F-1600 | AH1301010508 |
| 9 | Cylinder liner lock ring | F-1300/F-1600 | AH1301010518 |
| 10 | Bi-metal cylinder liner | F-1300/F-1600 | AH130102051200 |
| 11 | Clamp assembly | F-1300/F-1600 | AH130102050600 |
| 12 | Elbow NPT3/8-M22X1.5 | F-1300/F-1600 | AH1301020507 |
| 13 | Cylinder end cover | F-1300/F-1600 | AH1301010520 |
Supply Mud Pump Parts Brand And Model
BOMCO: F-500,F-800,F-1000,F-1300,F-1600,F-1600HL,F-2200HL
HONGHUA:HHF-500,HHF-1000,HHF-1300,HHF-1600,HHF-1600HL,HHF-2200HL
RONGSHENG:RS-F500,RS-F800,RS-F1000,RS-F1300,RS-F1600
LS:3NB-1300C, 3NB-1000, 3NB-1000C,3NB-800
ITECO:T-500,T-800,T-1000,T-1600
Oil WELL:A-350-PT, A-650-PT,A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
WEATHERFORD:MP-5, MP-8, MP-10, MP-13, MP-16
NATIONAL: 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220, C-250,C-350, K-380, K-500-A, K-700
EMSCO:F-350,F-500,F-650,F-800,F-1000,FA-1300,FA-1600,FB-1300,FB-1600,FC-1600, FC-2200,FD-1000, FD-1600
GARDNER DENVER:PZ-7, PZ-8, PZ-9,PZ-10,PZ-11
